| Width |
(56 mm) ,52mm |
|---|---|
| Length |
(27mm) ,23mm |
| Height |
(27mm) ,12 mm |
| Weight |
(0,11kg) ,0,05 kg |
| Supply Voltage |
from 5V to 24V DC |
| Maximum Current |
103mA |
| Standby Current |
<2mA |
| Power |
<0,001mA surveillance ,<0.2W standby ,3W (3s max.) during linking |
| Input |
433Mhz (on demand) ,868MHz (RED Compliant) ,BLE (on demand) ,IO-LINK (on demand) |
| Output |
DALI/DALI II ,dimming 5%-100% of duty cycle, off 0% 100mA sink, power off memory ,RS485 UART Interface |

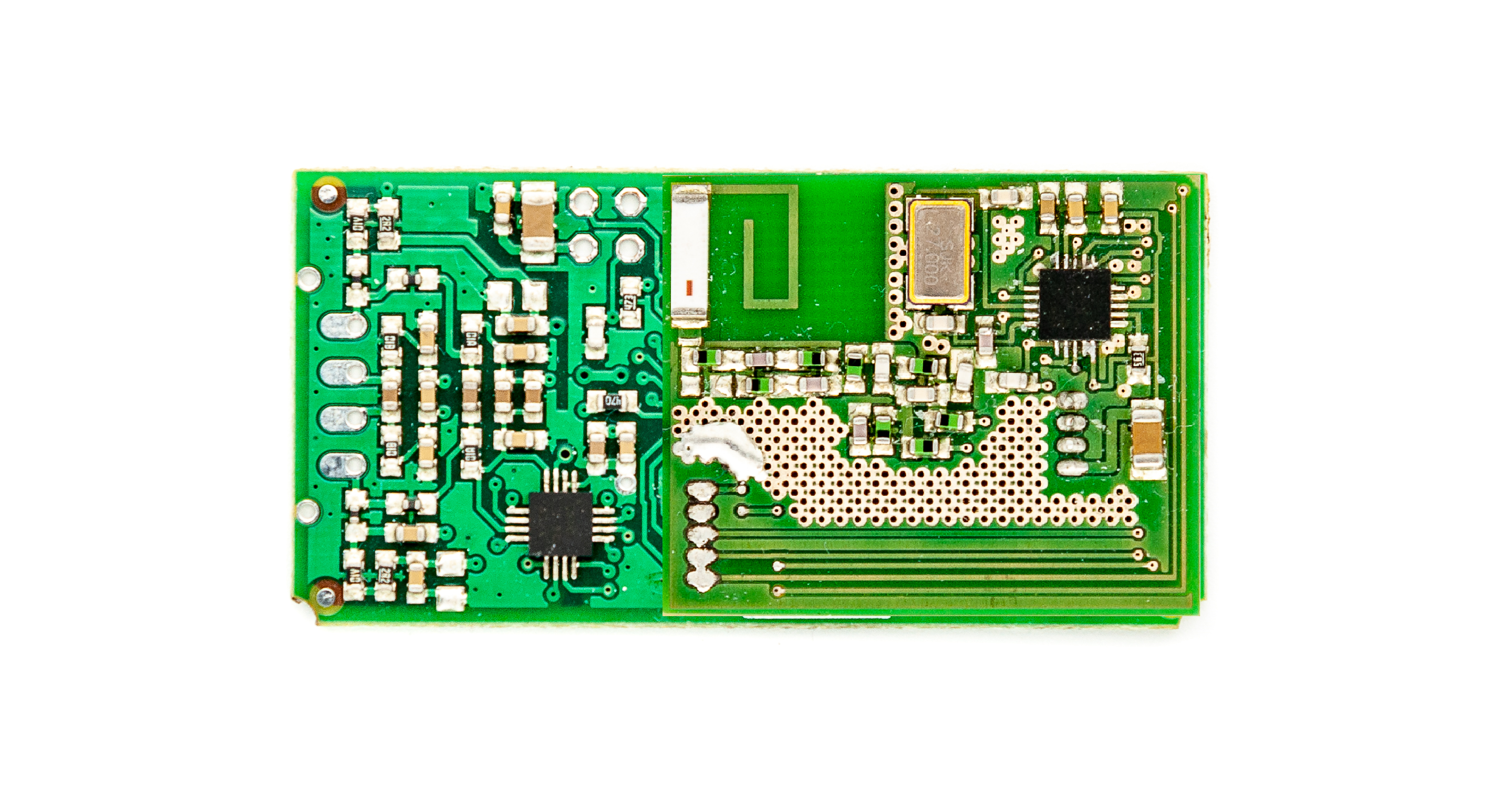

XECRFUP001
Controller for OEM or self standing application factory programmed to customer needs from a library of available applications (dynamic white, two module fixture, single channel, double touch/button input, signal transmission, sensors radio hub etc.).
If self standing version required is supplied in UL 94-0 compliant enclosure potted with silicon compounds and 0.1m cables.
Physical Connections:
- Positive DC Supply
- Negative DC Supply
- Wire to be connected to Customer device as inputs (max. 2)
- Output logic signal 3.3V 100mA or 24V max. serial communication interface (RS485, UART, I2C, DALI, DALI II)
- Firmware options available (dynamic white, two independent led modules etc., sensor interfacing, PC connection)
Radio Communication between modules could be programmed according to customer needs (MOQ 500 pieces) with or without Mesh Master.
