D243301
Dimmer for OEM or self standing application factory programmed to customer needs from a library of applications (dynamic white, two module fixture, single channel, double touch/button input, etc.).

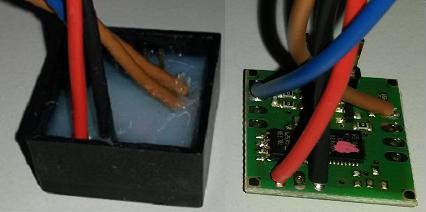

If self standing is supplied in UL 94-0 compliant enclosure potted with silicon compounds and 0.1m cables.
Connections:
- Positive DC Supply
- Negative DC Supply
- Wire to be connected to Customer PAD/Push Button (max. 2 inputs)
- Return wire for Push Button
- Output logic signal 3.3V 100mA sink (max. 2 channels)
- Firmware options available (dynamic white, two independent led modules etc.)
Informazioni aggiuntive
| Width |
(26mm) ,22mm |
|---|---|
| Length |
(26mm) ,22mm |
| Height |
(14mm) ,12 mm |
| Weight |
0,05 kg |
| Supply Voltage |
from 5V to 24V DC |
| Maximum Current |
103mA |
| Standby Current |
<2mA |
| Input |
Customer touch pad/push |
| Output |
dimming 5%-100% of duty cycle, off 0% 100mA sink, power off memory ,up to 2 x (3.3V PWM 100Hz to 20kHz) factory programmed |
| Custom Versions |
Firmware fully customizable (500 MOQ) |
